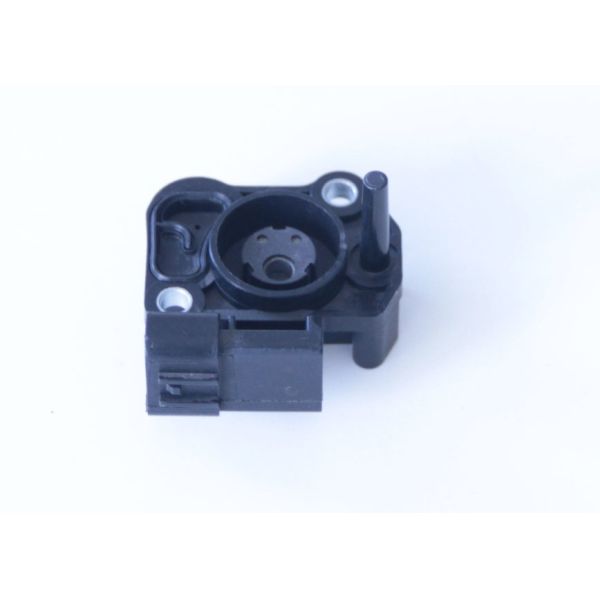

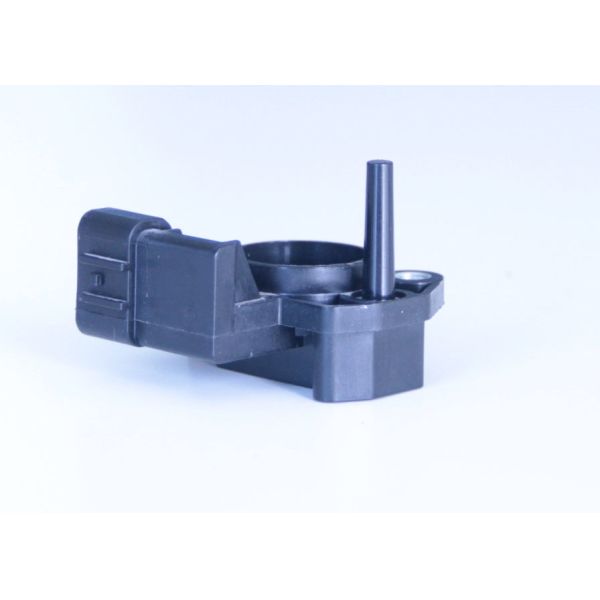

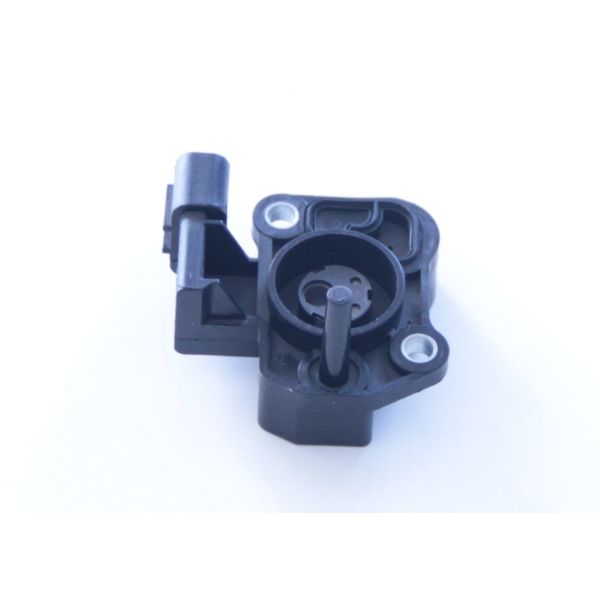

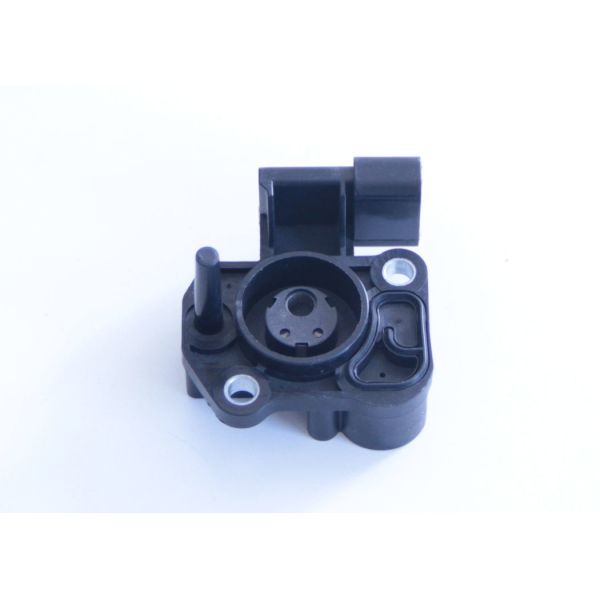

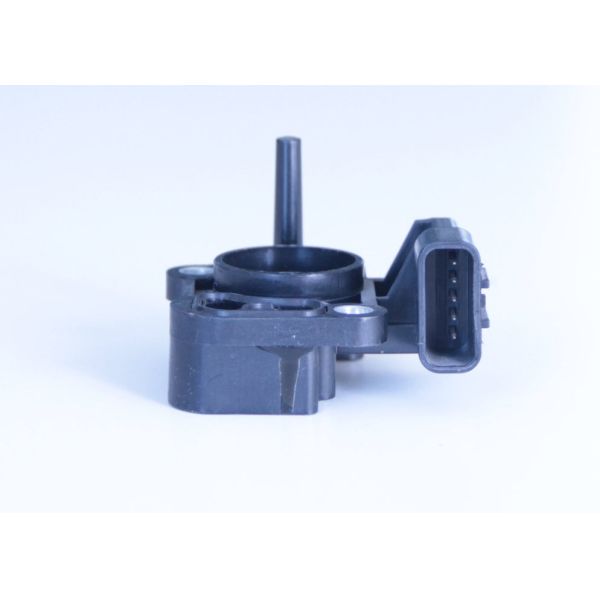

High Precision 3 In 1 Motorcycle Sensor For Temperature Pressure Angle Monitoring

Model Number : TIA-M08S4004

Place of Origin : China

MOQ : 1000 pieces

Packaging Details : According to size and volume

Delivery Time : generally 2-3 months（Special orders can be processed separately)

Payment Terms : T/T

Supply Ability : 20,000 pieces per month

Contact Now

TIA-B08S0204 3-in-1 Automotive Sensor – Temperature/Pressure/Angle Monitoring Component (PBT+GF30)

Product Overview

The TIA-B08S0204 3-in-1 Sensor is a versatile automotive component that integrates temperature, pressure, and angle detection into one compact unit, delivering comprehensive real-time data to optimize vehicle system performance. Built with PBT+GF30 (a reinforced, heat-resistant composite), it operates reliably in extreme temperatures (-40℃~125℃ for both working and storage), making it suitable for vehicles across global climate zones.

Powered by 5±0.5V voltage with <20mA low power consumption, this sensor outputs accurate voltage signals (±1.5% linear accuracy) to vehicle ECUs. Its rugged construction resists vibration, corrosion, and wear, ensuring long-term durability even in harsh driving conditions (e.g., off-road terrains, high-temperature regions)

Technical Specifications

Model	TIA-B08S0204
Material	PBT+GF30
Operating Temperature	-40℃ to 125℃
Storage Temperature	-40℃ to 125℃
Operating Voltage	5±0.5V
Operating Current	<20mA
Signal Output	Voltage
Linear Accuracy	±1.5%

High Precision 3 In 1 Motorcycle Sensor For Temperature Pressure Angle Monitoring

Key Advantages

Integrated 3-Parameter Monitoring

Combines temperature, pressure, and angle detection in one sensor—simplifying installation and reducing system costs.
Wide Environmental Adaptability

Stable performance in -40℃~125℃ (working/storage), compatible with vehicles in frigid, hot, or variable climates.
High-Precision Data Output

±1.5% linear accuracy ensures consistent, reliable measurements for critical vehicle system control.
Durable Reinforced Build

PBT+GF30 material offers mechanical strength and wear resistance for extended service life.

Application Scenarios

- Ideal for integrated monitoring in:

  Engine & Fuel Systems: Track fuel temperature, rail pressure, and component angle to enhance combustion efficiency;

  Suspension & Chassis: Monitor suspension temperature, pressure, and angle for improved ride stability;

  Transmission Systems: Detect fluid temperature, internal pressure, and shift mechanism angle for smoother operation.
